API: List of Clusters

Overview

In this exercise you will list the clusters connected to Prism Central. Later exercises will require the cluster uuid in the JSON body.

Note

Estimated time to complete: 5 MINUTES

Exercise: List the clusters

  1. Click + in the main window to create a new tab-window

  2. Click the dropdown and select POST

    • v3 standardizes on POST for listing to offer server-side filtering, grouping, and sorting

  3. Enter the URL to list clusters

    • https://{{prism_central_ip}}:9440/api/nutanix/v3/clusters/list

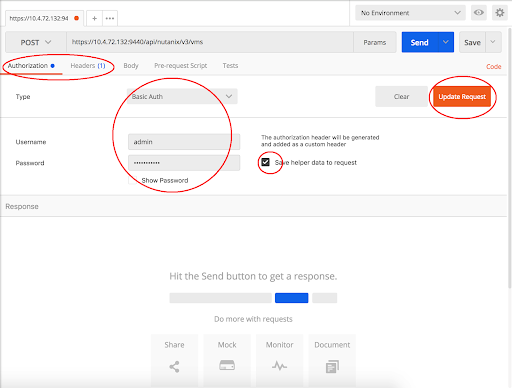

  4. Configure basic authentication for this API call

    • Click the Authorization tab and select Basic Auth from the Type dropdown
    • Enter Prism credentials of the cluster, and click Update Request:
      • Username - admin
      • Password - Use the “Prism login password” from handout
    ../_images/basicauth.png

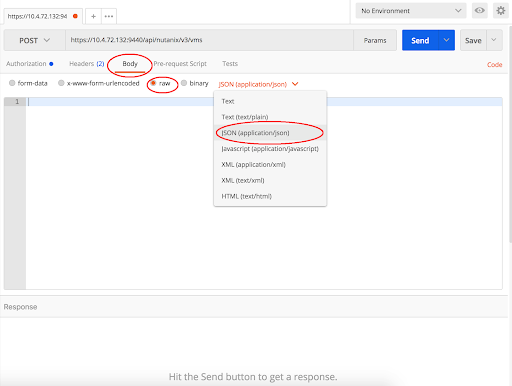

  5. Set the media type to application/json

    • Click the Body tab
    • Select the radio button for raw
    • Click the Text dropdown and select JSON (application/json)
    ../_images/jsonmediatype.png

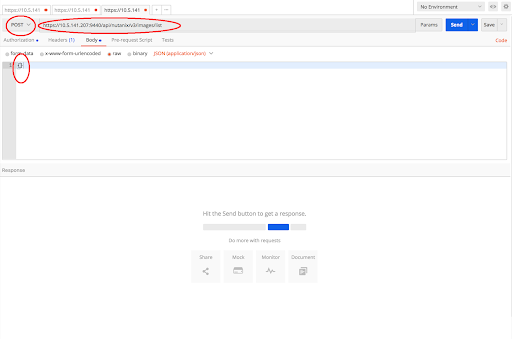

  6. Fill out the body

    • Click the Body tab
    • Copy or type an empty dictionary in the json body as seen below
    {}
    ../_images/apimetajson.png

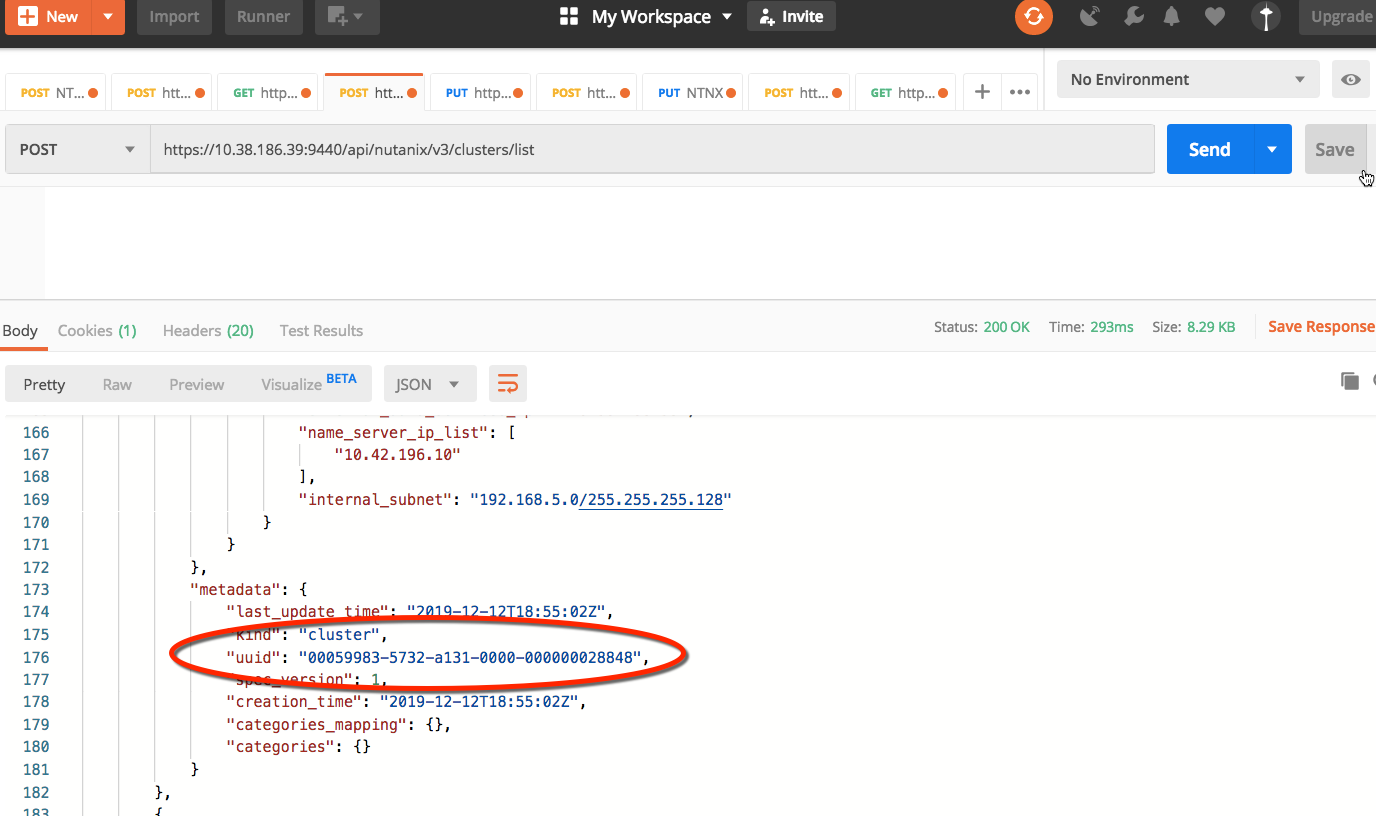

  7. Click Send to submit the v3 API call

    • The intent response provides an array of cluster resources
    • Take note of the cluster UUID under the metadata
../_images/clusteruuid.png

Takeaways

In this exercise you peformed a simple cluster list API call. You will need a cluster UUID for all v3 API fucntions. You also configured your cluster authentication which will be the same in the remaing exercises/
