API: List of Subnets¶

Overview¶

In this exercise you will list the cluster subnets. Later exercises will require the subnet uuid in the JSON body.

Exercise: List the AHV subnets¶

1. Click + in the main window to create a new tab-window

2. Click the dropdown and select POST

   • v3 standardizes on POST for listing to offer server-side filtering, grouping, and sorting

3. Enter the URL to list images

   • https://{{prism_central_ip}}:9440/api/nutanix/v3/subnets/list

4. Configure basic authentication for this API call

   • Follow the same steps from the first exercise
   • v3 conforms to HTTP as a stateless protocol such that each API call is authenticated

5. Set the media type to application/json

   • Follow the same steps from the first exercise

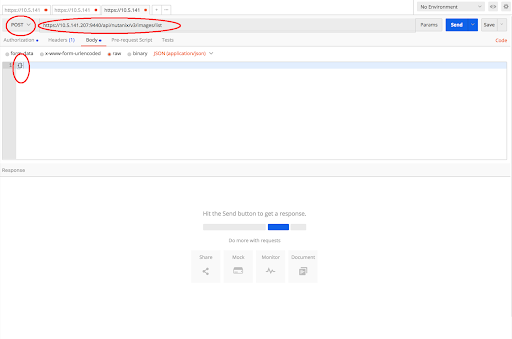

6. Fill out the body

   • Click the Body tab
   • Copy or type an empty dictionary in the json body as seen below

   {}




7. Click Send to submit the v3 API call

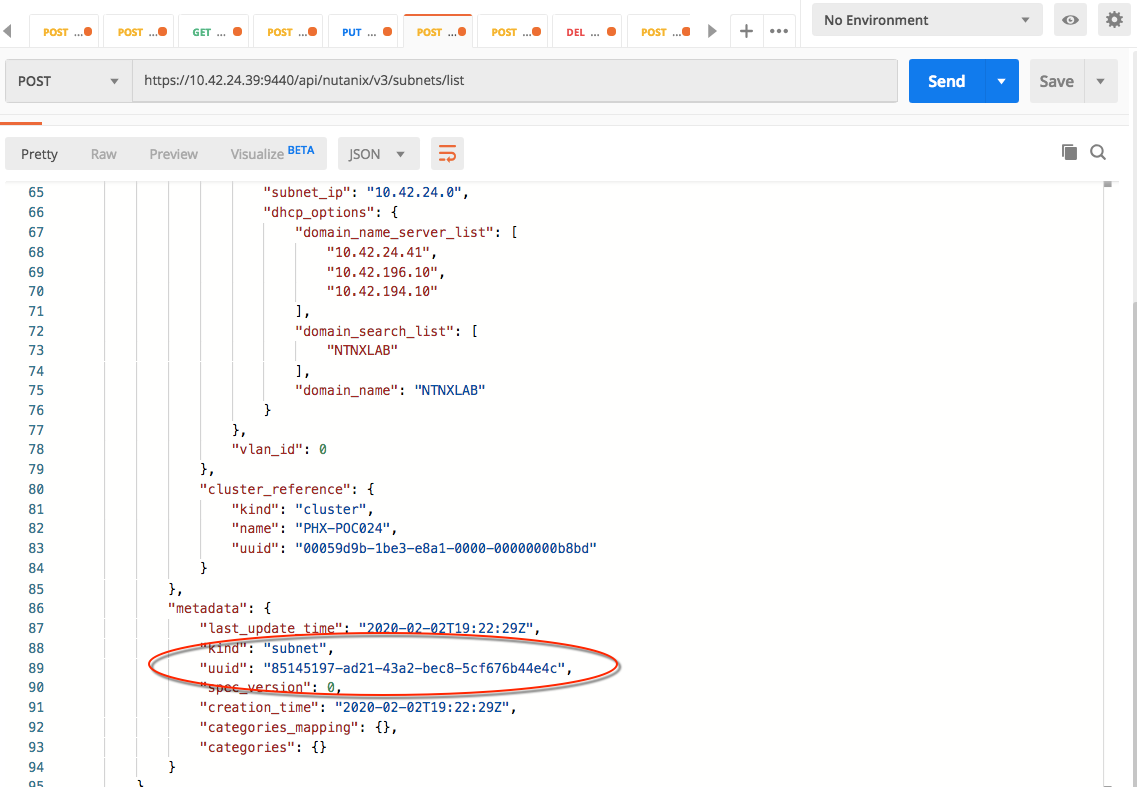

• The intent response provides an array of subnet resources
• Take note of the uuid for the Primary network in the metadata section
