API: Update VM

Overview

In this exercise perfoms two VM updates in a single API call. You update you VM to associate a disk and perform a power on.

Note

Estimated time to complete: 20 MINUTES

Exercise: Update your VM

  1. Click + in the main window to create a new tab-window

  2. Click the dropdown and select PUT

    • v3 uses PUT to allow the declaration of a spec that describes the new desired final state

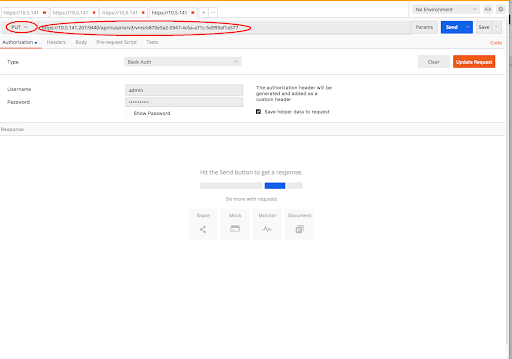

  3. Enter the URL to update your VM

    • Copy the URL used in the third exercise: https://{{prism_central_ip}}:9440/api/nutanix/v3/vms/{{uuid}}
    • Replace {{prism_central_ip}} with the IP address mentioned in the lab handout
    ../_images/updatevm.png

  4. Configure basic authentication for this API call

    • Follow the same steps from exercise 1
    • v3 conforms to HTTP as a stateless protocol such that each API call is authenticated

  5. Set the media type to application/json

    • Follow the same steps from exercise 1

  6. Fill out the body

    • Click on the tab from exercise 3 where you retrieved the status of your VM
    • Copy the entire response
    • Click on the right-most tab for this exercise to update your VM
    • Paste the response from the GET as the body for the PUT

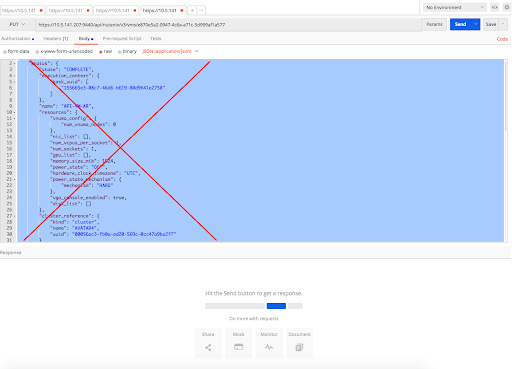

    • Only delete the status object from the body and keep the spec and metadata section.
    ../_images/deletestatus.png

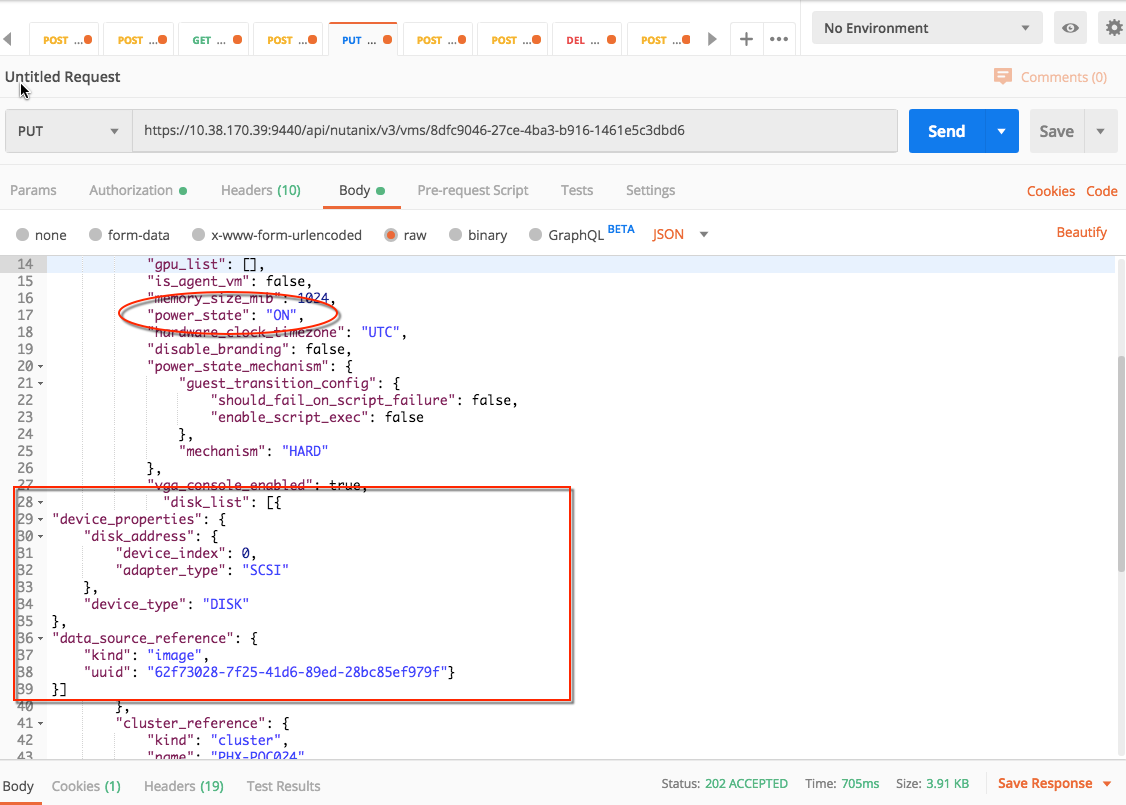

  7. Adjust the body to mount a disk and power on

    • Change the power_state attribute from OFF to ON
    • Search for “disk_list”: [] and replace with the following disk list into the spec
      "disk_list": [{
"device_properties": {
    "disk_address": {
        "device_index": 0,
        "adapter_type": "SCSI"
    },
    "device_type": "DISK"
},
"data_source_reference": {
    "kind": "image",
    "uuid": "<imageuuid>"
}
}]

  • Replace <imageuuid> with the uuid of the CentOS image from exercise 4

    ../_images/updatevmstate.png

  1. Click Send to submit the v3 API call

    • v3 intentful PUTs return a 202 on success to indicate that the intent was accepted
    • While the response state is PENDING, the VM is being transformed to its final state
    • With most APIs, powering on a VM and adding a disk is two calls. With v3, both operations (generally, any number of operations) can be accomplished with one PUT
    • Because of this, v3 exposes dramatically fewer URLs, as all entity transformations can be requested intentfully by providing the entity spec via PUT on the URL for the entity

  2. Get the status of your VM

    • Click on the tab for exercise 3 where you retrieved the status of your VM
    • Click Send to repeat the GET to retrieve the latest information about your VM
    • Once the state is COMPLETE, the status will reflect the changes made to your VM

  3. Check it out in the Prism UI

    • Open a web browser to https://{{prism_central_ip}}:9440/console/
    • Enter the Prism Username and Password displayed in your lab handout to log in
    • Type the f key or click the search icon to open the search bar on the header
    • Enter the name of your VM (hint: your Initials)
    • Click on your VM in the table and click the Launch Console button under the table
    • A window will appear for the CentOS login prompt
